Pressure compensation tanks, the optimal solution for still water fluctuations.
-Internal membrane
-Smooth flow rate
-Reduced noise level of the water circuit
-Longer pump life
-Easily integrated into new or existing systems
-Mounting point for an optional pressure switchr
-Food grade materials
Versions:

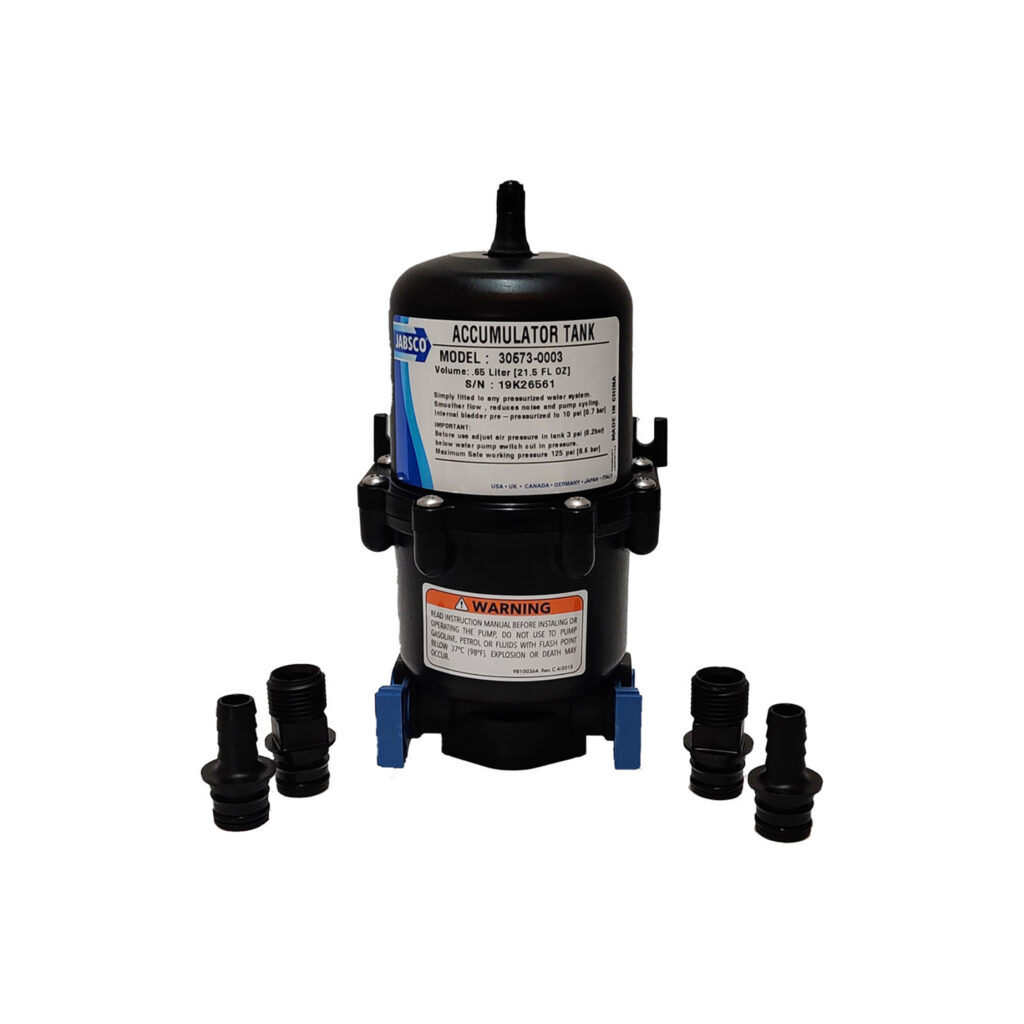

-0.7l, Cod. 30573-0003
Compact pneumatic bladder tank for smaller systems and space conditions
Easy mounting in any position
Perfect for low volume water supply applications
Tank is pressurized to 10 psi (0.7 bar) and can be matched to the cut-in pressure of a pump

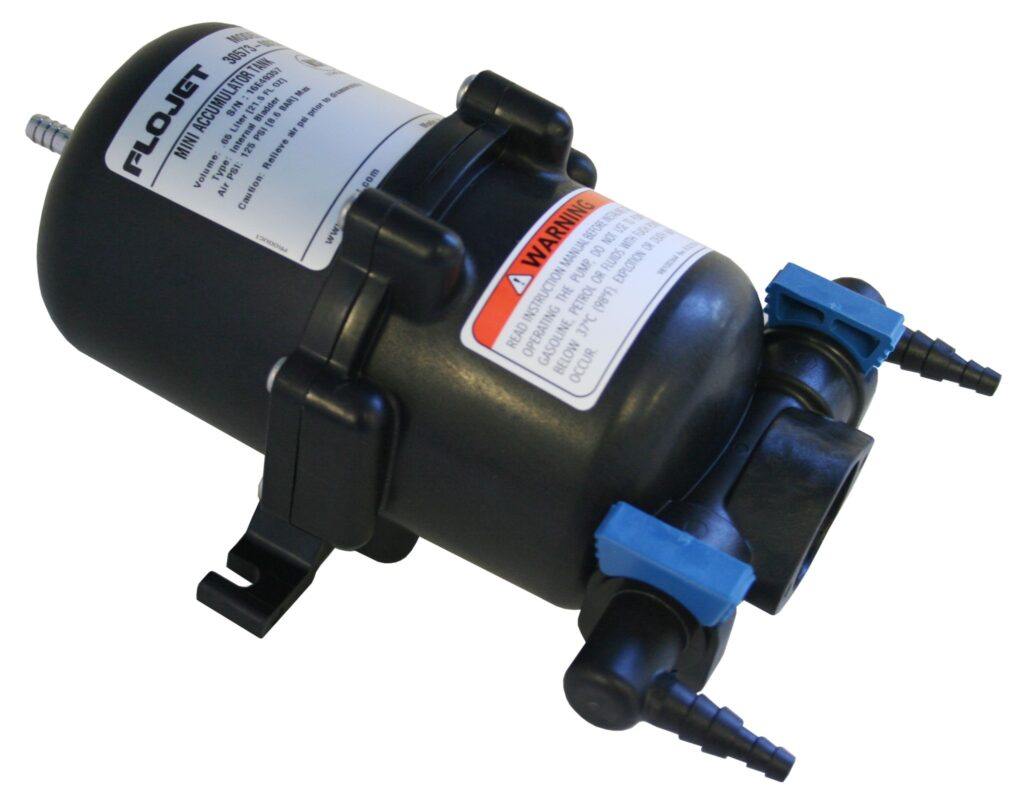

-1l, Cod. 30573-0000
Compact pneumatic bladder tank for smaller systems and space constraints
Easy mounting in any position
Perfect for low volume water supply applications
Tank is pressurized to 10 psi (0.7 bar) and can be matched to the cut-in pressure of a pump
-8l, Cod. 30573-0000
Optimizes all pressure-regulated water circuits with multiple outlets.
A pressurized water supply ensures full flow volume is maintained whenever system demand momentarily exceeds pump capacity.
Consistent inflow, quiet water circuits.
Better regulation of hot water temperature.
Longer pump life, reduced battery drain.
Integrated rubber diaphragm eliminates need for maintenance and provides universal mounting option.
Fixed mounting brackets ensure stable installation.
Connections: ¾ inch BSP female thread

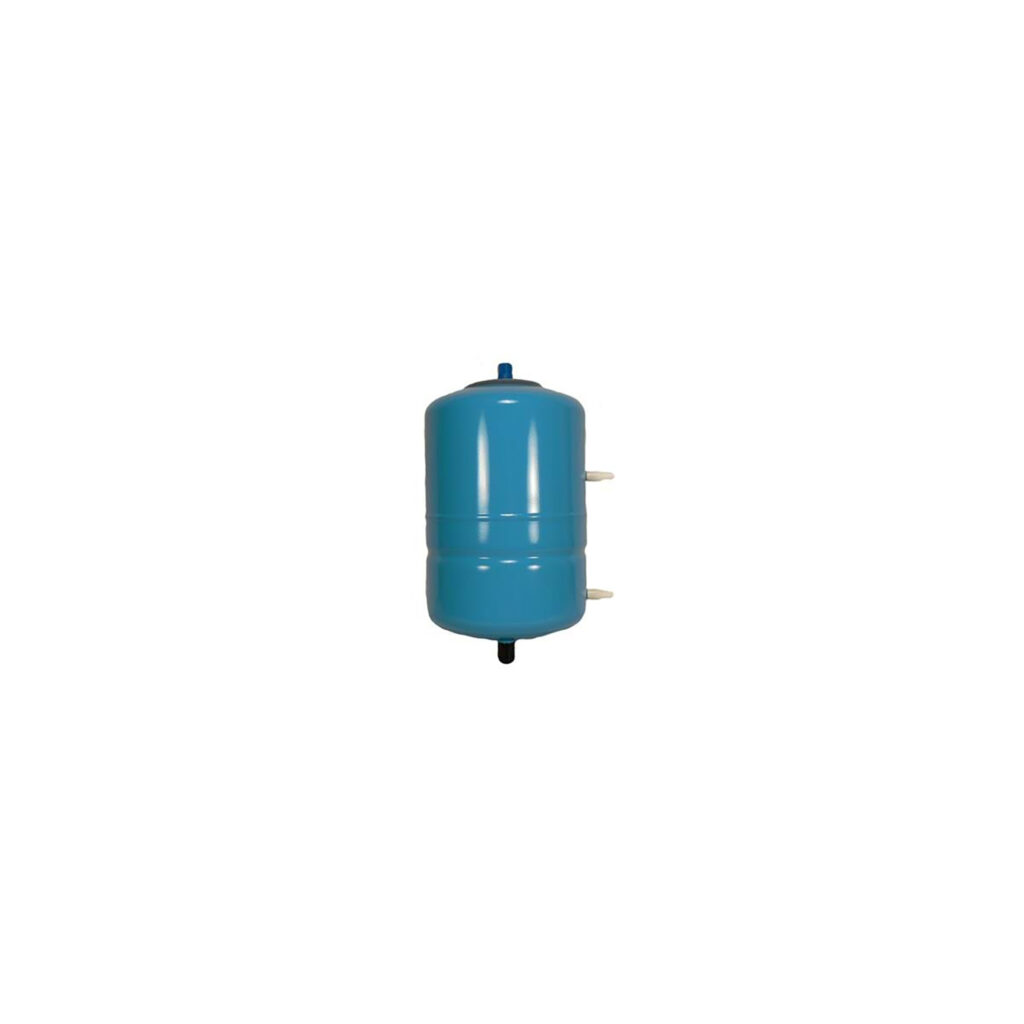

-15l, Cod. 20799003A
Provides smooth flow from faucets and shower, reduces pump cycling and eliminates pulsation and water hammer
Water is completely separated from the air chamber and metal tank by a bladder and polypropylene tank lining
Can be mounted horizontally, vertically or upside down
Brackets and band clamps included
Upstream pressure up to 20 psi (1.4 bar)
Tank can be fine-tuned to pump cut-in pressure
