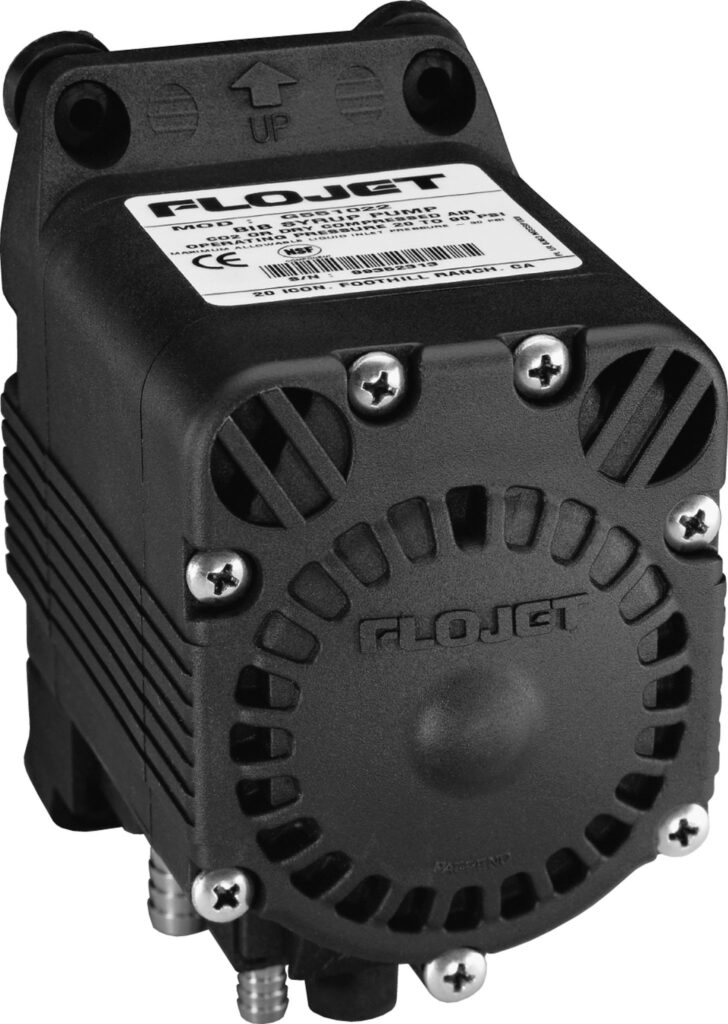

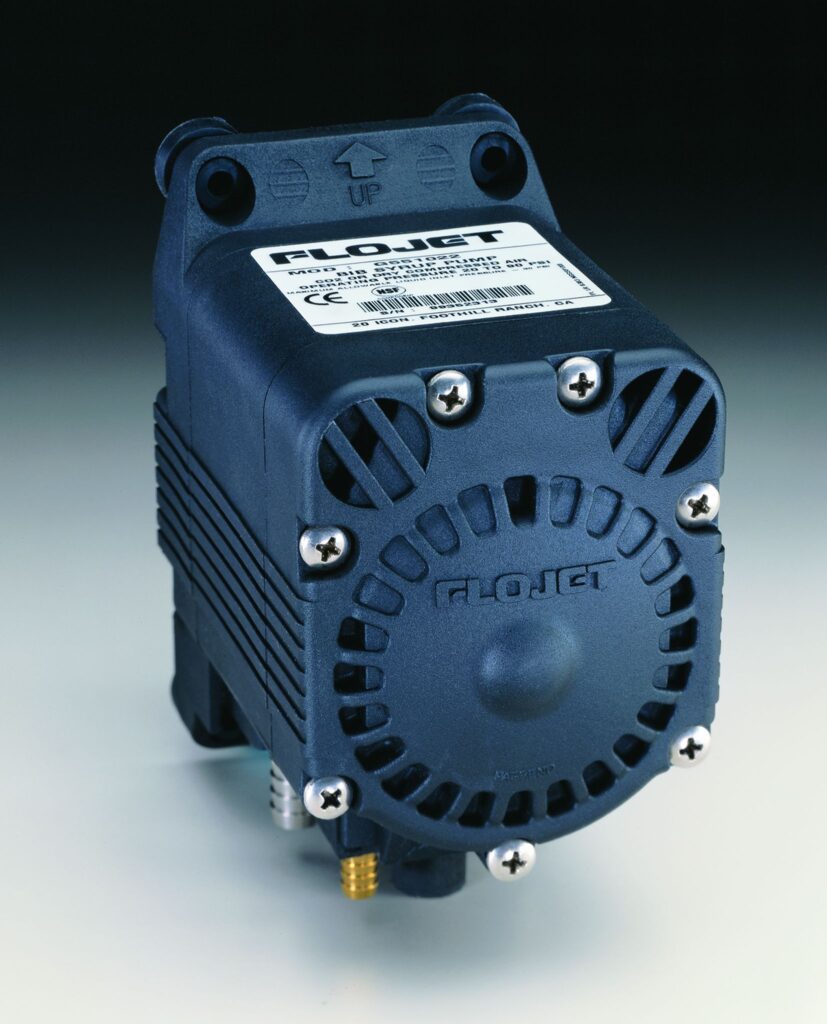

Flojet G55 Bag-inBox-pump

Compressed Air Double Diaphragm Pump for Fruit Juice Concentrates, Tea, Wine, other alcoholic Beverages

• suitable for operation with air, nitrogen and CO2 and adjustable via gas/air supply
• delivers up to 18,9 l/min
• Inlet pressure max. 2.1 bar
• Delivery pressure up to 6.9 bar, compressed air max. 6.9 bar
• Dry self-priming up to 3 m
• Connections: Product for 3/8″ (9.5 mm) or with outlet 1/4″ (6.35 mm), pressure 1/4″ (6.35 mm), others possible
• Working temperature 1°C – 49°C
• weight 0.58 kg,
• Designed for pumping up to 270.000 l
• Approvals: NSF, FDA, CE, SK 382-001
• Conforms to EC 1935/2004
• versions: G55G022A, G55G012A
• Other models are available upon request.
