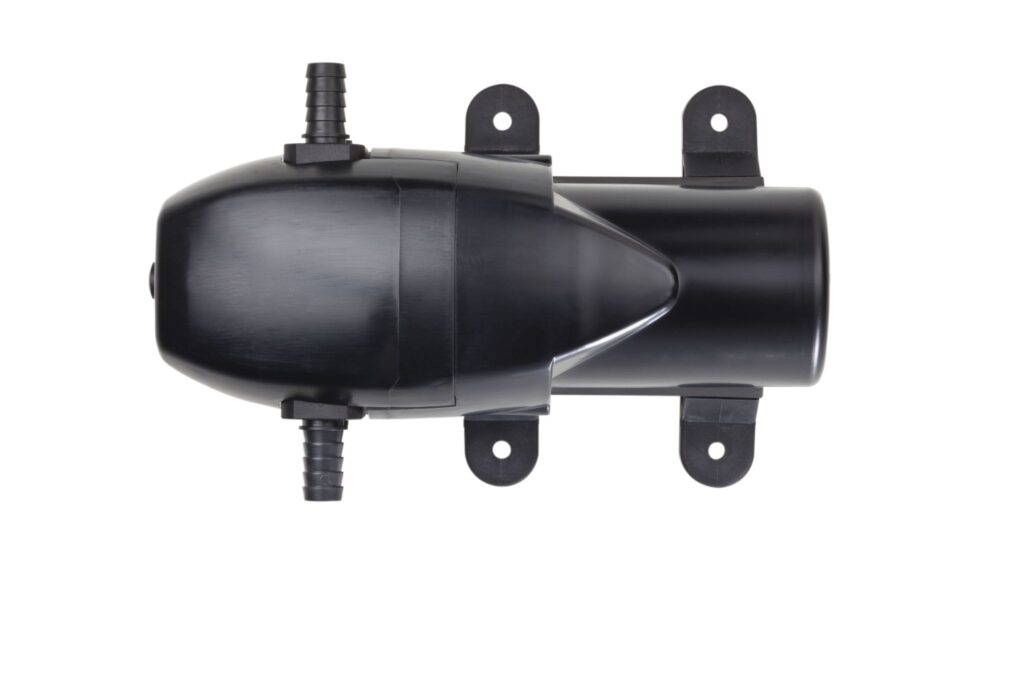

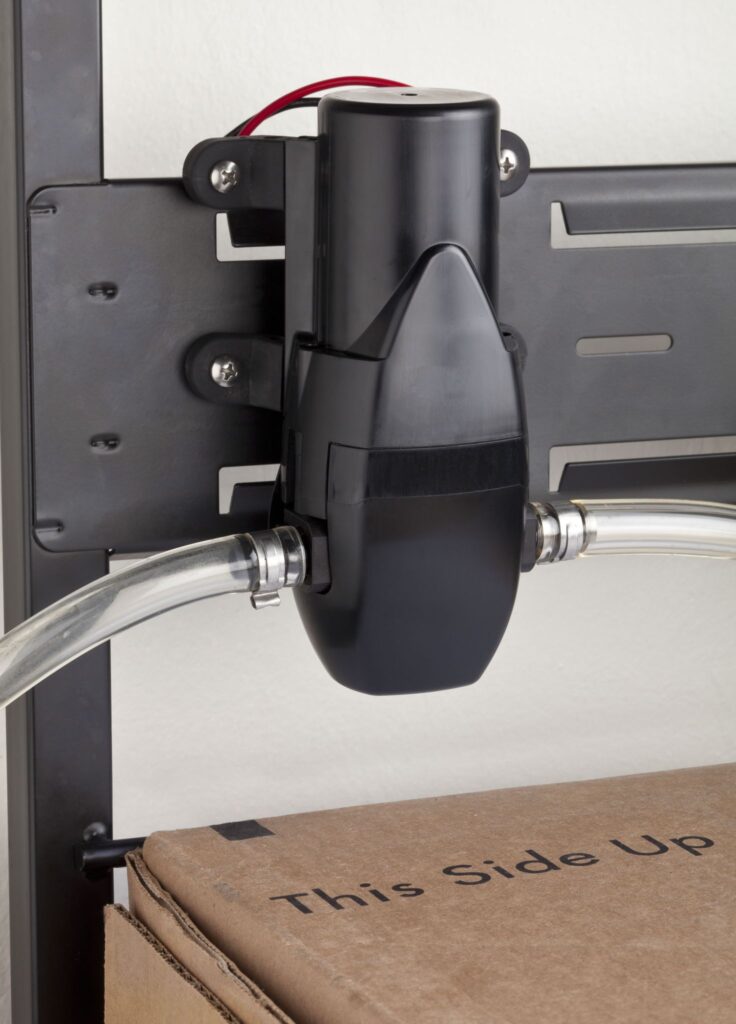

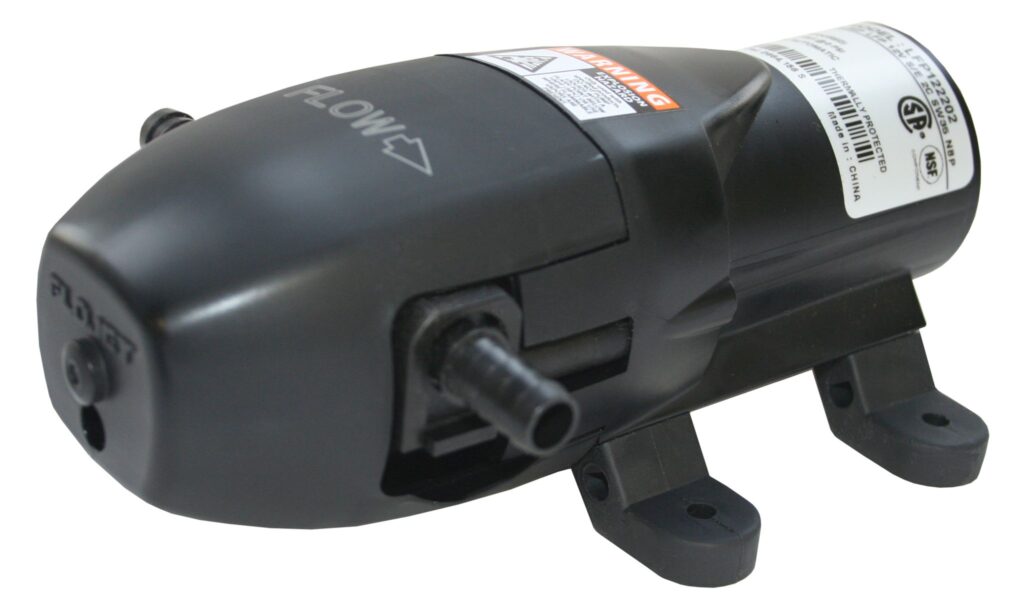

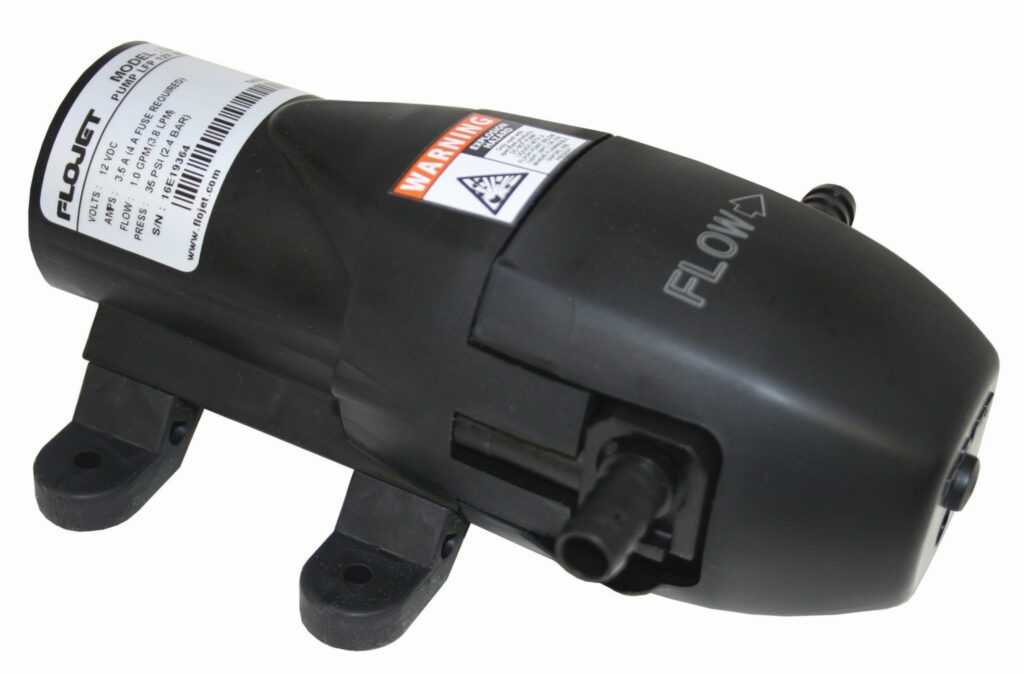

FLOJET RLF PLUS

Small, compact diaphragm pump for pumping and dispensing beverages

• dry running safe, operation intermittent. Available in many versions with different specifications.
• Capacity 3.8 l/min at 0 bar
• without pressure switch or with 1.4 bar, 2.4 bar, 2.8 bar
• Temperature max. 43° C
• Suction height 0,8 m
• Electric motor 12 V or 24 V
• Housing polypropylene, diaphragm Santoprene®, valves EPDM
• Connections 3/8″ (9,5 mm), 5/16″ (8mm), 1/4″ (6,35 mm), as grommet or Speedfit, some also 90°, 1/2″ (12,7 mm) adapter for the grommets
• Electrical connections as cable, but also configurable with plug connection.
• Suitable for beverages with 15% alcohol hook or less.
• Weight 0.5 kg
• Approvals NSF, FDA, CE
• Current versions: RLFP222202D, RLFP122202D, RLFP122002D, RLFP222702V, RLFP2X003D, RLFP122201D, RLFPX0002F, others on request.
