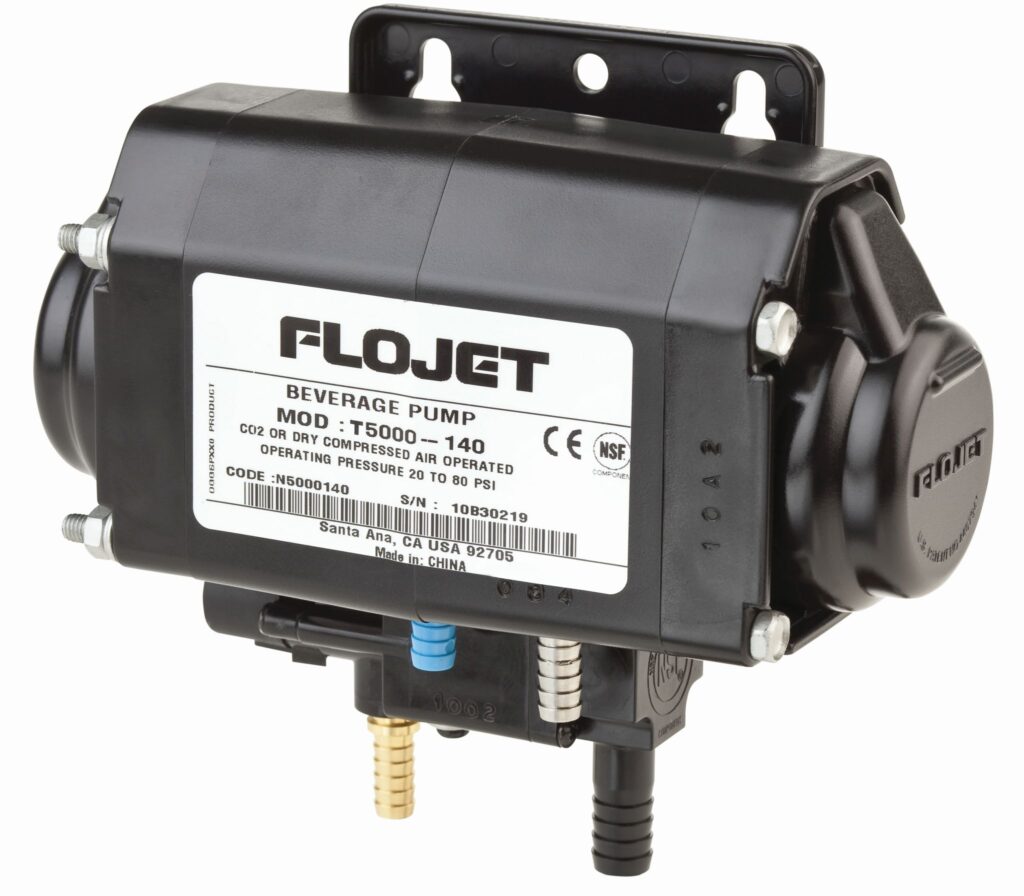

Compressed air double diaphragm pump for BiB applications for concentrates
without pulp, tea, wine, other alcohols
up to 7,6 l/min
suitable for operation with air, nitrogen and CO2 and adjustable via
gas/air supply adjustable
Inlet pressure max. 0.7 bar
Delivery pressure up to 5.5 bar, compressed air max. 5.5 bar
Dry self-priming up to 3 m
Connections: Product for 3/8″ (9.5 mm), pressure 1/4″ (6.35 mm), others possible
Version available for altitudes above 900 m
Temp: 1°C – 49°C
0,54 kg
approvals: NDF, FDA, CE, SK 290-001
Compliant with EC 1935/2004
Designed for pumping up to 140.000 l
Versions: T5001114, T5001110, T5091119, T5A01110
Other models are available upon request.
