We supply individually manufactured pressure reducer plates.

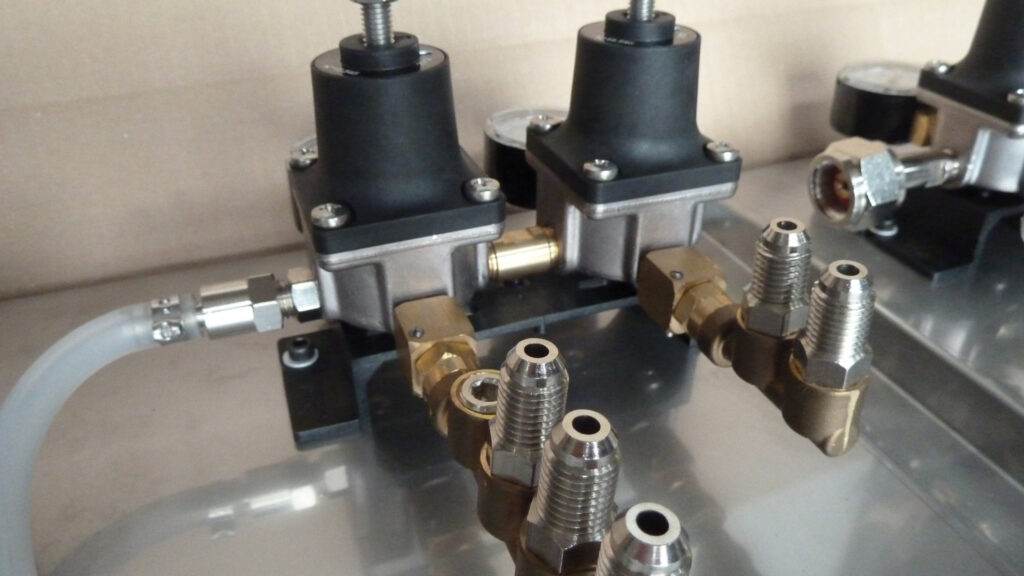

The example picture shows:
Pressure reducing valve plate for AFG CNS 380×330 mm:
1 Pressure regulator CO2 7 bar SK with stopcock CC 1/2″-16 BSF
2 Intermediate pressure regulator CO2 7 bar SK with stopcock CC 1/2″-16 BSF
1 Intermediate pressure regulator connected to CO2 distributor with 5 outlets CC 1/2″-16 BSF
1 outlet each from pressure reducer, one intermediate pressure regulator and laterally to the left of the intermediate pressure regulator battery 90°
Access on the right with high-pressure hose SK 1.5 m
