These pressure reducers comply with the highest international quality standards in accordance with UNI EN ISO 2503.
Tested and certified SK311-014 and SK311-015, they are carefully and scrupulously tested one by one on the test bench before being placed on the market, a further guarantee being the built-in safety valve with sealed calibration.
The Series 24 reducers have a larger volume of the compensation chamber, which on an operational level allows the continuous delivery of a larger quantity of beverage, preventing the reducer from freezing.
Series 24 reducers have a pressure relief valve on the diaphragm kit, which acts as a second safety valve and allows pressure to be relieved from the reducer by turning the adjustment screw anti-clockwise directly.
for CO2 and N2
pressure setting as reqested, standard is 3 bar, 4.5 bar and 7 bar

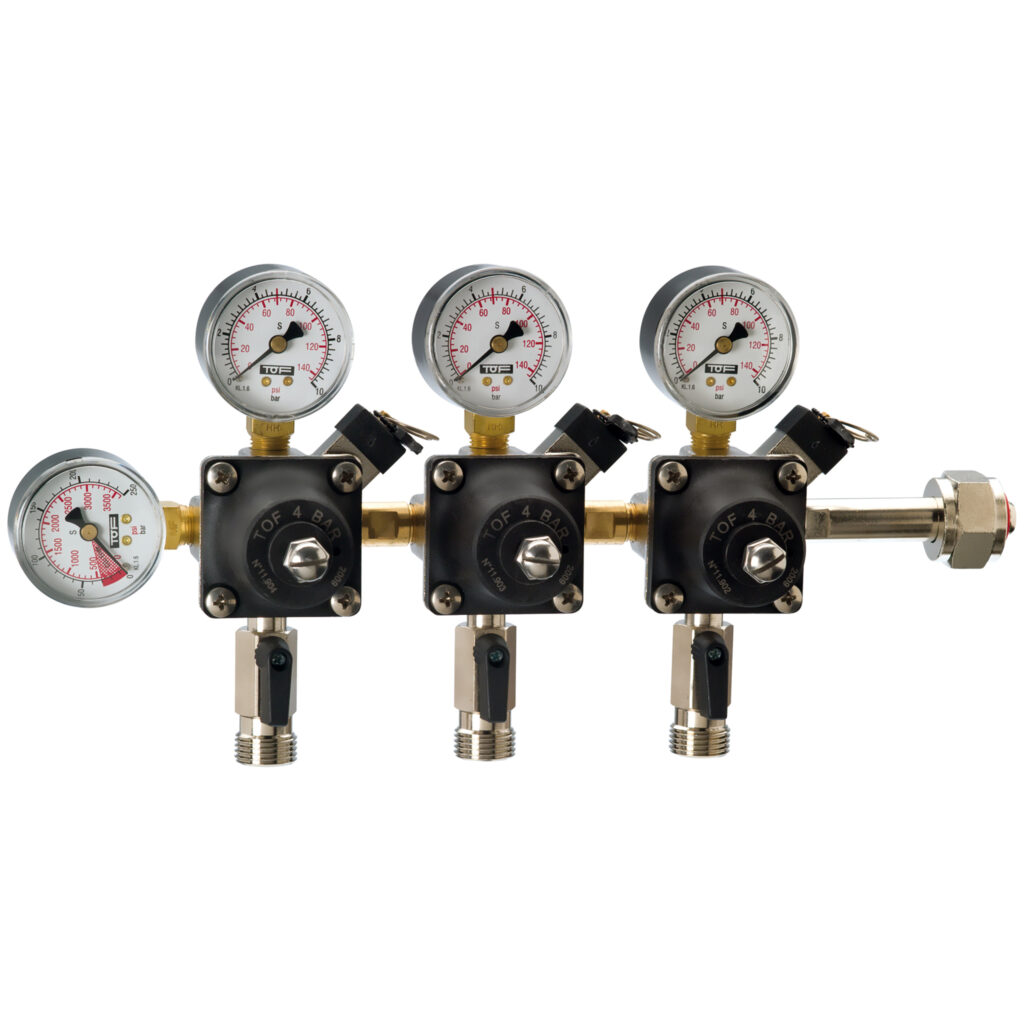

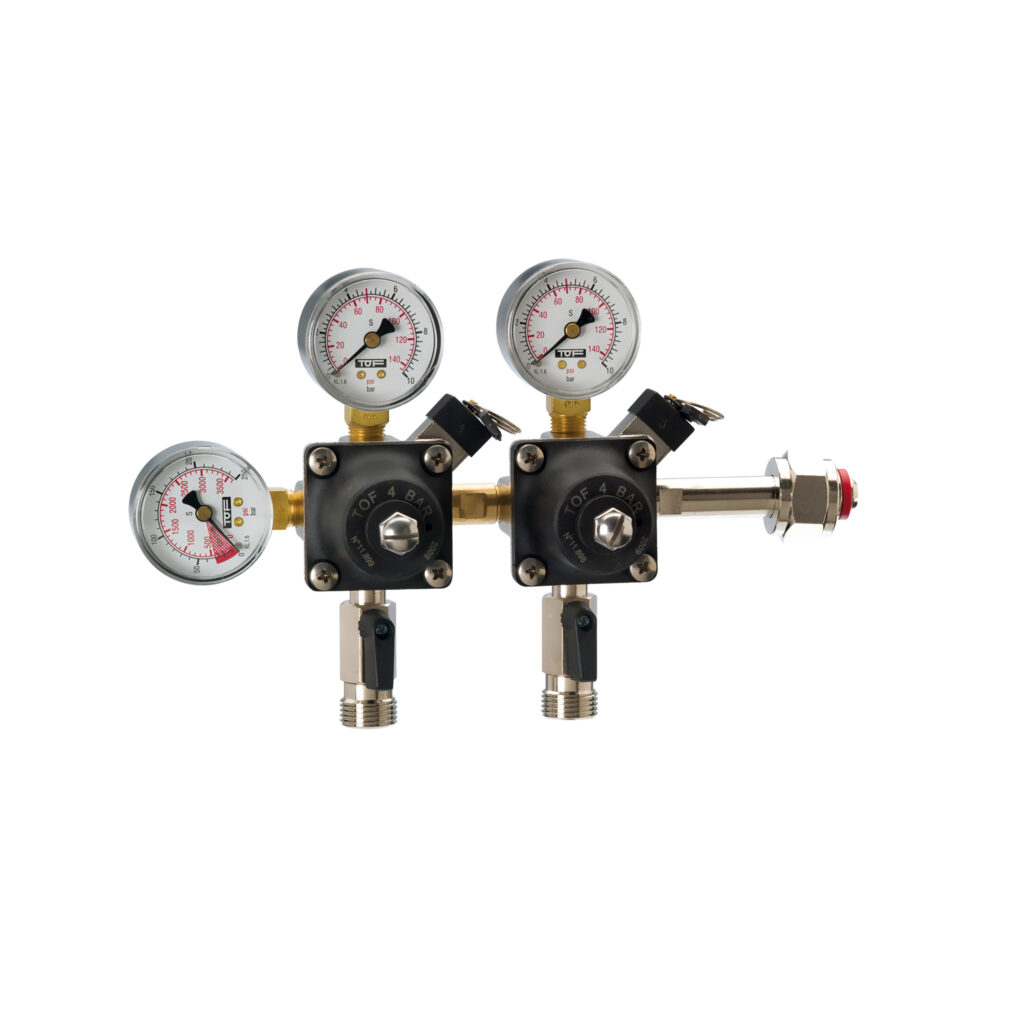

can also be assembled as a battery, e.g. 3x 3 bar, 1x 3 & 1x 7 bar, as desired
SK – UL approvals
food-grade galvanic coating to NSF61
body made of pressed brass with built-in safety valve
high pressure valve interior made of AISI 300 series stainless steel with Teflon seal
G1/4 connections
cylinder connections depending on country of destination and gas used
heat-insulating synthetic resin cap, which improves and optimises the performance of the reducer by preventing it from freezing and avoiding the annoying formation of condensation
