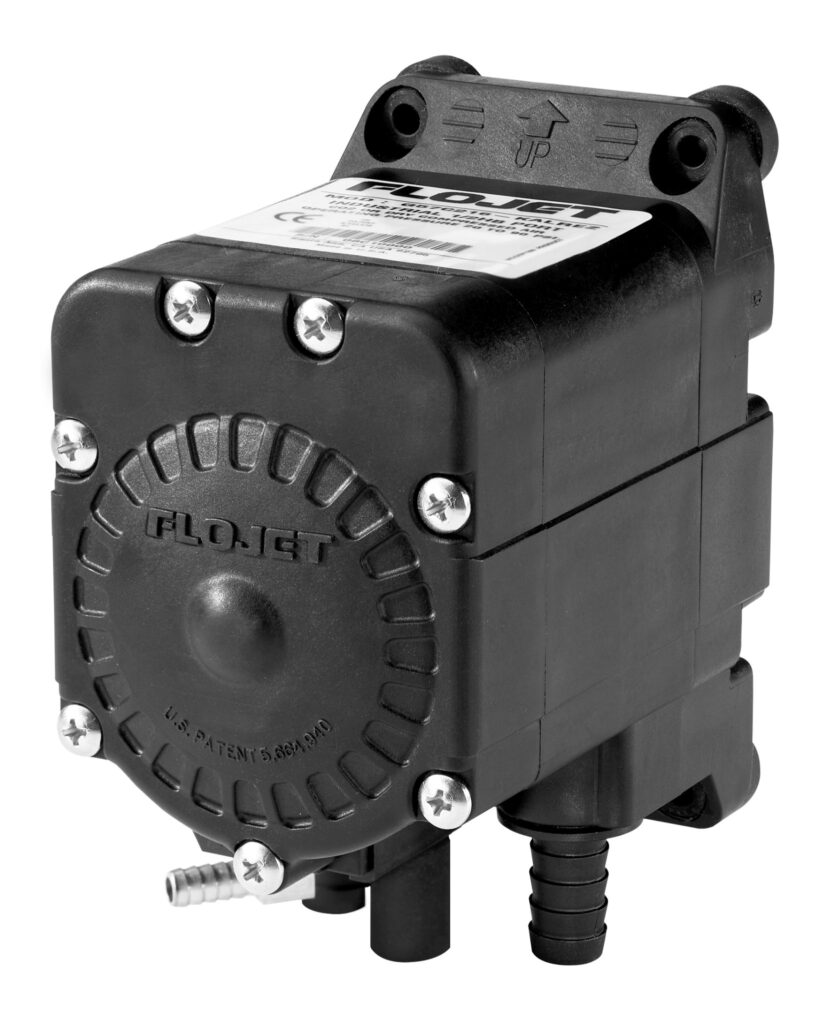

FLOJET G80 Bag-in-Box-pump

Compressed Air Double Diaphragm Pump for fruit juice concentrates, tea, wine, other alcoholic beverages with pulp.

• Suitable for operation with air, nitrogen and CO2 and adjustable via gas/air supply
• delivers up to 18,9 l/min
• Inlet pressure max. 2.1 bar
• Delivery pressure 1.4 to 5.5 bar
• Dry self-priming up to 3 m
• connections beverage 3/8″ (9,5 mm), pressure 1/4″ (6,35 mm), others possible
• Working temperature 1°C – 49°C
• weight 0,58 kg,
• Designed for pumping up to 270.000 l
• Approvals: NSF, FDA, CE, SK 382-001
• Compliant with EC 1935/2004
• Cod. G80E022A
